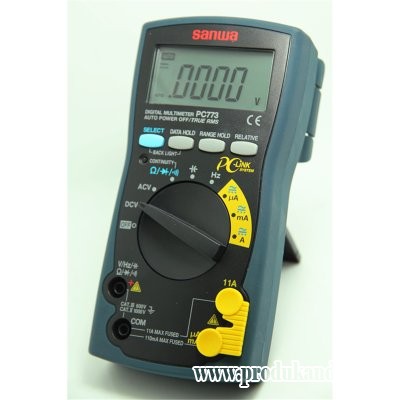

Sanwa Digital Multimeters PC773 PC Link
Digital Multimeters / Data processing (PC Link)
11000 Count Minimum resolution 0.01mV, 0.01Ω
■ 4-1 / 2 digits 11000 count
■ 0:28% best accuracy
■ True RMS AC
■ Thermo plastic elastomer, high resistance against drop shock
■ Maximum DC / AC 11A can be measured
■ Continuity buzzer and LEDs
■ Data hold, Range hold, Relative function
■ Auto power off function (30 min.)
■ Optical USB link interface (optional)
Display: numeral display 11000
Sampling rate: 4 times / sec.
AC frequency bandwidth: 45~100Hz (110mV range), 45~500Hz (1.1V range), 45~1kHz (11V range and avobe, ACA)
Software: PC Link 7 (This model of works with PC Link 7 only.)
Clamp probe: CL-20D, CL-22AD, CL33DC,
Temperature probe: T-300PC (PC Link software is Necessary.)
Optical PC link cable: KB-USB773 Test Leads: TLF-120
Carrying case: C-77, C-77H
Clip adapter: CL-13a, CL-14, CL-15a, CL-DG3a, TL-9IC
